Finishing

HS200/2KW Ultrasonic Tank

• Tank Capacity 200 Litres
• Internal Dimensions 700 x 600 x 500 mm
• Internal Basket Dimensions 640 x 560 x 400 mm
• Chemical Multi wash and Draygiene
• Concentration 5 -10% ( add chemical to water — not water to chemical)
• Multi wash (5.25 litres) and Draygiene (0.75 litres) per tank fill
• Temperature 42

2800D Ultrasonic Tank

• Tank Capacity 29.5 Litres
• Internal Dimensions 495 x 292 x 203 mm
• Chemical Ultrasonic cleaner plus
• Concentration 5 -10% ( add chemical to water — not water to chemical)
• Temperature 65

Demineralized Water Tank

• Tank Capacity 160 Litres
• Internal Dimensions 865 x 365 x 555 mm

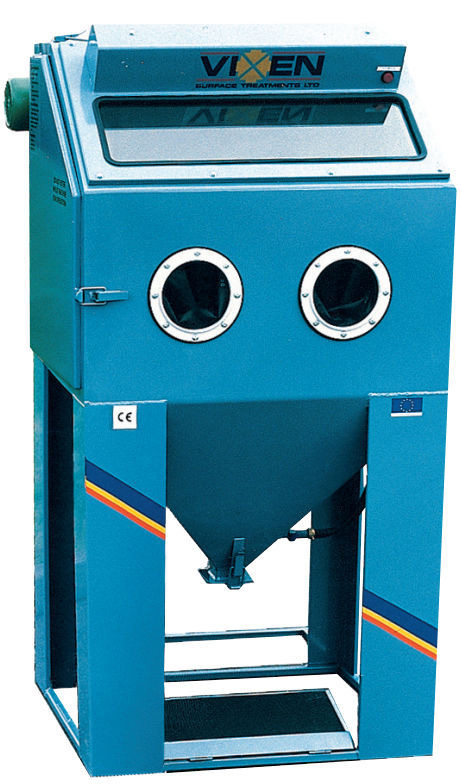

Vixen-Fox 25 Shot Blaster

• Tank Capacity 700 x 500 x 500
• Tungsten Carbide nozzle
• Foot pedal control
• Integral extraction high performance Multi-pocket filter
• Powder-coated finish
• Large side door
• Easy pressure conversion
• Fitted with rubber gauntlets
• Fluorescent lighting

Shot blasting is used to prime and clean surfaces, scale or old
coatings to expose clean bare metal ready for subsequent treatment. It also provides an effective method of preparing a surface with a roughened profile which promotes the adhesion of the specialist coatings .

We are equipped to shot blast using media of white aluminium oxide.
For larger components and assemblies it can offer substantial speed and cost savings over other conventional cleaning methods.

With our dedicated assembly room, we can offer you a comprehensive and fast assembly service. We assemble to our customers specifications, either fully assembled products or part assembled. We are also able to offer several joining processes through our subcontract partners. These processes include welding, soldering, Electron beam welding and glueing. Our dedicated working area is perfect for all types of assembly and kit-type work.

KITTING FACILITIES

To offer a world-class combination of supply chain management, manufacturing, inspection and measurement, Wellington Engineering provides a full kitting service to our customers. With components fully protected in secure specialized containers, we can confidently meet your need for an accurate. guaranteed supply of complex and critical items. We often get asked if we can machine and assemble customer projects, this allows the customer to ensure that their components will be fully built upon delivery thus saving them time on assembly.

VIBRATORY FINISHING

The vibratory finishing machine is a versatile manufacturing process used to deburr, polish, burnish, descale, and hone a wide range of workpieces. It is a mass finishing process, meaning that it can process multiple parts simultaneously, making it ideal for high- volume production.

• Effective motor position for superior vibration.
• High tensile nut bolts for longer machine life.
• Efficient removal of process fluid for best surface finish. Energy efficient motor.
• Bowls shot blasted before and after polyurethane lining for painting.
• Extended bases for operator-friendly operations.
• Anti rotation motor locking plate provided.
• Bowls are stress relieved
• Optional reverse
• Optional control panels

ADVANTAGES

• Can handle very small to large parts. Batch or continuous operation.
• In-process inspection.
• Integral separation.
• Better media/parts mixing since it has cascade and circular action.
• Economical for general purpose work, heavy deburring and continuous inspection.
