We have full 5-axis simultaneous machining capabilities with Hurco VC500i, Hurco VMX30UI and Hurco VMX42UDi XP machining centres.
1 x – Hurco VC500i 5-axis, Full Simultaneous Machining Center
- 5-axis Full Simultaneous Machining Center
- Hurco Max5 touch-screen LCD control
- 12,000RPM, 13kW in-line spindle
- Spindle Power (peak) – 17.4 hp @ 1,500 rpm (13 kW @ 1,500 rpm)
- Spindle Torque (peak) – 61 ft. lbs @ 1,500 rpm (82.7 Nm @ 1,500 rpm)
- 250Kg, 500mm diameter table
- Full simultaneous 5 axis profiling capabilities
- X, Y, Z Axis Travel – 520 x 450 x 400 mm
- B Axis Motion – 110°/+110°
- C Axis Motion – 360°
- 40 station tool changer
- Max tool diameter – 76mm
- Max tool length – 300mm
- 20 bar coolant through spindle
- Absolute linear encoders all axis
1 x – Hurco VMX30UI with ProCobot (Robotic arm)
- 5 axis full simultaneous trunnion machine
- Hurco Max5 touch-screen LCD control
- Full simultaneous 5 axis profiling capabilities
- 12,000RPM, 13kW in-line spindle
- Peak torque (Nm) @ (rpm) – 214 @ 600 / 95 @ 1,500
- 200Kg, Ø248mm table
- Continuous C axis, +/-110° B axis
- Absolute linear encoders all axis
- X, Y, Z Axis Travel – 762 x 508 x 520mm
- Tool changer – 40 stations
- Max tool diameter – 76mm
- Max tool length – 300mm
- 20 bar coolant through spindle
- Full robotic integration with auto doors

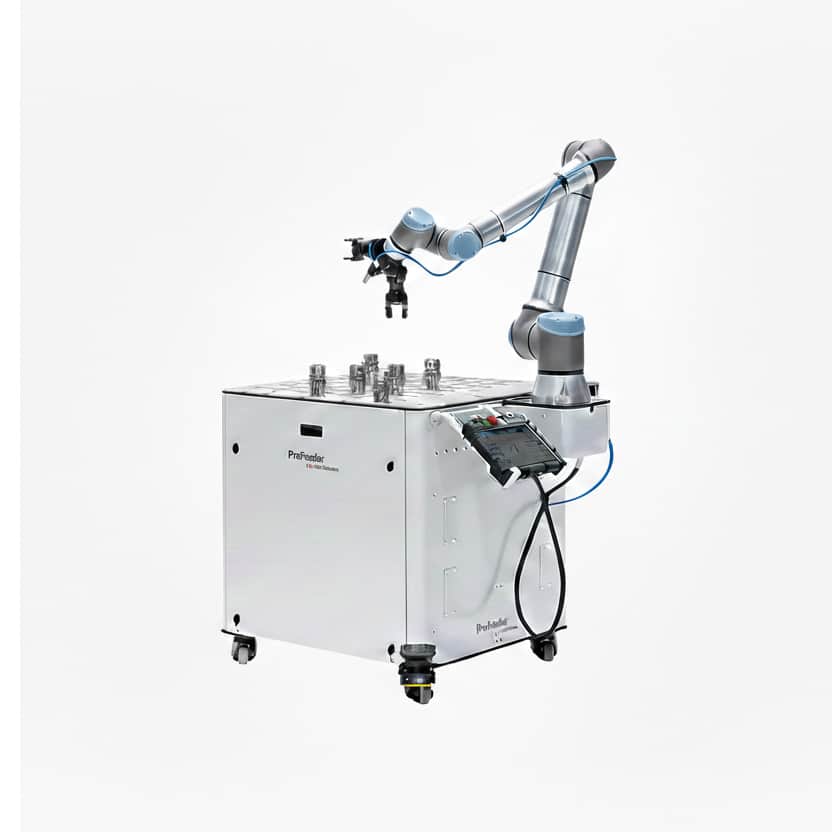

1 x Procobots Machine Automation
- Unattended Running
- Less Than 5 Minutes Parts Changeover.
- Automatic Calibration to the CNC Machine – No setup
- Save and Load Jobs
- Model UR10e – 12.5 Kg Load Capacity
- Built in Force Sensor (Sense of Touch)
- Part Stacking
- Flexible Solution, can be Moved to Other Machines
1 x – Hurco VMX42UDi XP with ProCobot (Robotic arm)
- X, Y, Z axis Travel – 1,067 x 610 x 520mm.
- Direct Drive Servos on X,Y & Z axis.
- Table Working Surface – Ø398mm.
- Spindle Nose to Table (min-max) – 63mm / 583mm
- Tilt Axis A – +30° / -110°.
- Rotary Axis C – 360° continuous.
- Spindle Speed – 15,000 RPM with spindle chiller.

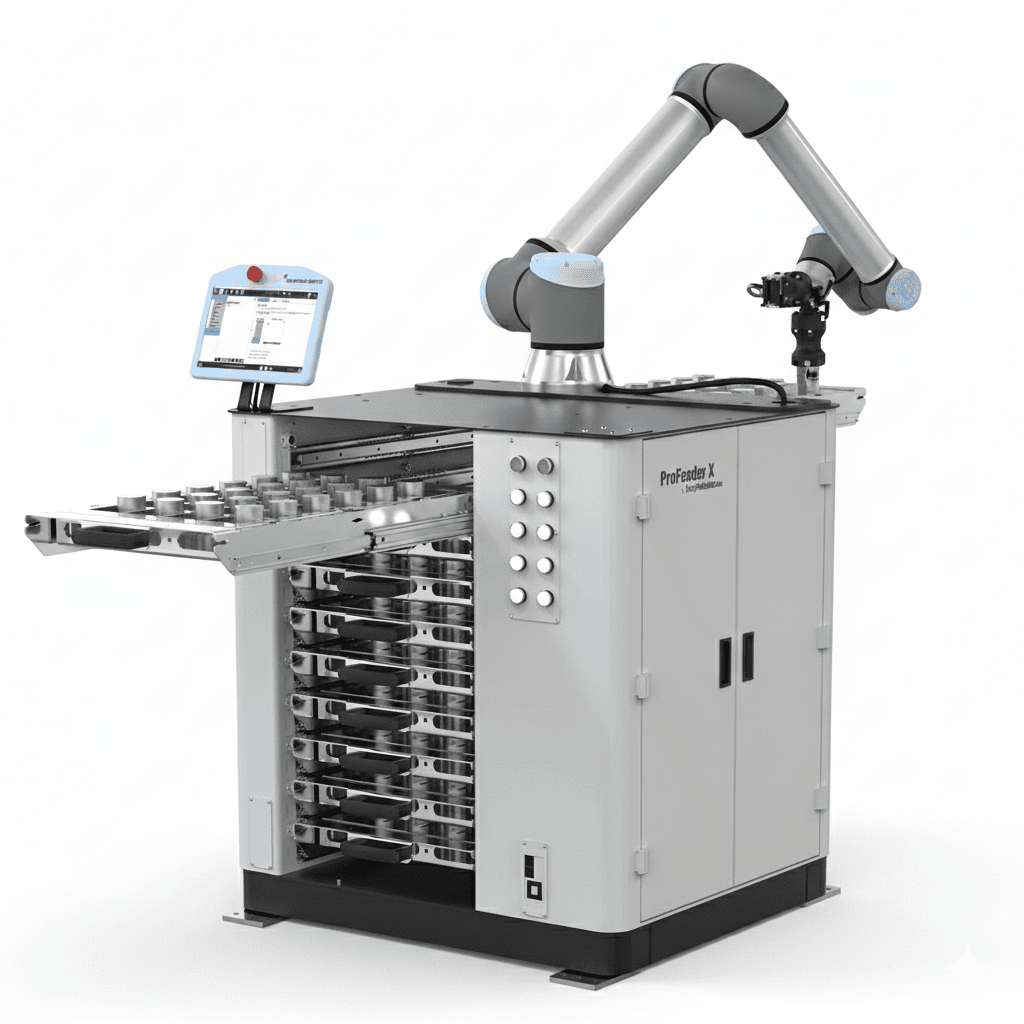

1 x ProCobot (Profeeder Robotic arm)
- Precise automated parts loading and unloading.
- High throughput with minimal manual effort.
- Up to 30kg payload.
